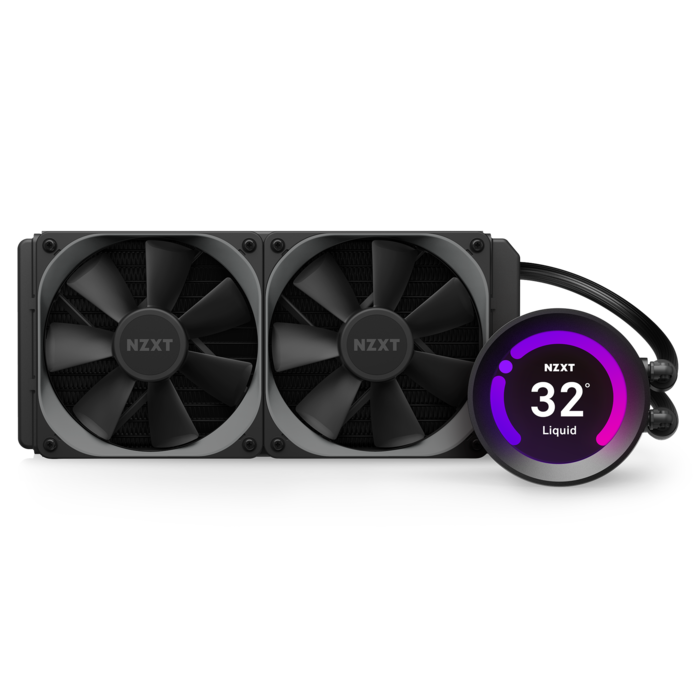

Kraken Z53
The all-new Kraken Z Series is more than just a superior liquid cooling system. With a digitally rotatable display that supports CAM info, custom images, and gifs, the Kraken Z series is more customizable than ever.
Bright 2.36” diameter screen supports custom images and CAM system info
Adjustable screen orientation in software to accommodate pump head orientation
Includes an NZXT RGB connector for compatibility with our AER RGB 2 fans or NZXT RGB accessories
All-new 7th Gen Asetek pump providing better cooling and 800RPM whisper-quiet performance
NZXT CAM-controlled screen, lighting effects, pump speed, and custom fan curves with 0dB modes
Protection with reinforced extended tubing (400mm)
Water Block | Dimensions: Diameter: 79mm; H: 52.4mm Material: Block: copper; Housing: plastic |
Pump | Motor Speed: 800 – 2,800 + 300 RPM Power: 12VDC, 0.3A |
Radiator | Dimensions: 123 x 275 x 30mm Material: Aluminum |
Tube | Length: 400mm Material: Ultra-low evaporation rubber with nylon braided sleeve |
Cap | Material: Aluminum and plastic Display Orientation: Software adjustable Default and -90° orientation Display Panel Active Area: 2.36” (60mm) diameter Display Color: 24-bit true color LCD Display Resolution: 320 x 320 px Display Brightness: 650 cd/m² NZXT RGB Channel Output Voltage: 5V DC NZXT RGB Channel Output LED Qty.: Up to four LED strips - 10 LEDs per strip, Up to five AER RGB fans, Up to six NZXT RGB accessories |
Fans | Model: Aer P 120mm Quantity: 2 Dimension: 120 x 120 x 26mm Speed: 500-2,000 + 300 RPM Air Flow: 18.28 - 73.11 CFM Air Pressure: 0.18 - 2.93mm-H2O Noise: 21-36dBA Bearing: Fluid Dynamic Bearing Power Consumption: 12V DC, 0.32A, 3.84W Connector: 4-pin PWM Life: 60,000 hours / 6 Years |
Limited Warranty | 6 Years |
Model Number | RL-KRZ53-01 |
EAN | 5060301696468 |
UPC | 815671015181 |
Compatible Socket & CPU | Intel Socket LGA 1200, 1151, 1150, 1155, 1156, 1366, 2011, 2011-3, 2066 Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron AMD Socket AM4, sTRX4*, TR4* (*Threadripper bracket not included) AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper |
NZXT CAM | Download | ||
English Manual | 4.2 MB | Download | |
Spanish Manual | 4.2 MB | Download | |
Simplified Chinese Manual | 4.44 MB | Download | |
Russian Manual | 4.21 MB | Download | |
Portuguese Manual | 4.2 MB | Download | |
Korean Manual | 4.25 MB | Download | |
Japanese Manual | 4.25 MB | Download | |
Italian Manual | 4.2 MB | Download | |
German Manual | 4.21 MB | Download | |
French Manual | 4.21 MB | Download | |
Traditional Chinese Manual | 4.45 MB | Download |
NZXT.com Store Returns, Exchange, Parts Policy | Eligible products qualify for a full refund or exchange only with an authorized RMA number and the item is returned to the NZXT.com Store inventory within 30 days of purchase. Returns are not allowed beyond 30 days of the purchase date. The NZXT.com Store reserves the right to deny any return or exchange. Refunds will be credited to the original method of payment. To initiate a return, simply submit a request at support@nzxt.com. If you are purchasing any items that are discontinued, please be aware that we may no longer carry parts for those items. We apologize for the inconvenience. They will come as is. If you have issues upon receiving your case, please contact us as soon as possible. |
If you need the AM4 Bracket here’s how to obtain one.
