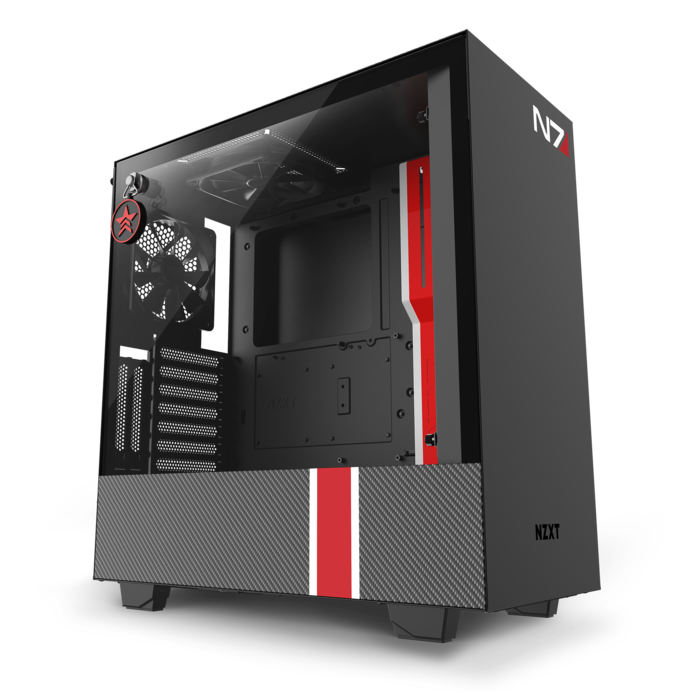

H510i Mass Effect

LIMITED EDITION COMPACT MID-TOWER ATX CASE

  • The H510i Mass Effect equips your build with N7 protective gear, featuring a kinetic armor theme and the iconic N7 logo and stripe. A two-sided charm enables you to display your true colors with the choice of either a Paragon or Renegade logo.

  • Smart Device V2 for lighting and fan control

  • Two RGB lighting channels and three fan channels

  • USB 3.1 Gen2-compatible USB-C connector on the front panel

  • Iconic cable management bar and uninterrupted tempered-glass side panel

  • Cable routing kit with pre-installed channels and straps

  • Two Aer F120mm fans included

  • Built-in mounting bracket vertical GPU installation

  • Two-sided Paragon/Renegade charm included

Unavailable

$199.99
DimensionsW: 210mm H: 460mm D: 428mm (with feet)
Material(s)SGCC steel, tempered glass
Weight6.8kg
Motherboard SupportMini-ITX, MicroATX, ATX
Front I/O Ports1x USB 3.1 Gen 2 Type-C
1x USB 3.1 Gen 1 Type-A
1x Headset Audio Jack
FiltersAll air intakes
Smart Device V23x Fan channels with max 10W per channel output*
2x RGB LED port support up to
4x NZXT addressable LED strips or
5x AER RGB fans
Built-in noise detection module
*Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters.
LED Strip(s)2 integrated addressable LED strips
Vertical GPU Mount2 slots
Included AccessoriesInstallation screws
10x cable ties
1x headset audio jack splitter (4 pole to 3 pole)
Drive Bays2.5": 2+1
3.5": 2+1
Expansion Slots7
Radiator SupportFront: 2x 140 or 2x 120mm with Pull
Rear: 1x 120mm
Fan SupportFront: 2x 120 / 2x 140mm
Top: 1x 120 / 1x 140mm (1 Aer F120 case version included)
Rear: 1x 120mm (1 Aer F120 case version included)
Fan SpecsAER F120 (case version)
Speed: 1200 ± 200 RPM
Airflow: 50.42 CFM
Noise: 28 dBA
Bearing: Rifle bearing
ClearanceCable Management: 19-23mm
GPU Clearance: Up to 381mm w/o front water cooler installed, Up to 325mm with front water cooler installed.
CPU Cooler: Up to 165mm
Front Radiator: 60mm
Rear Radiator: 60mm
Reservoir & Pump: Up to 180mm (along cable bar), Up to 86mm (along bottom panel)
Warranty2 years
Multi-Language ManualPDF16.5 MBDownload
