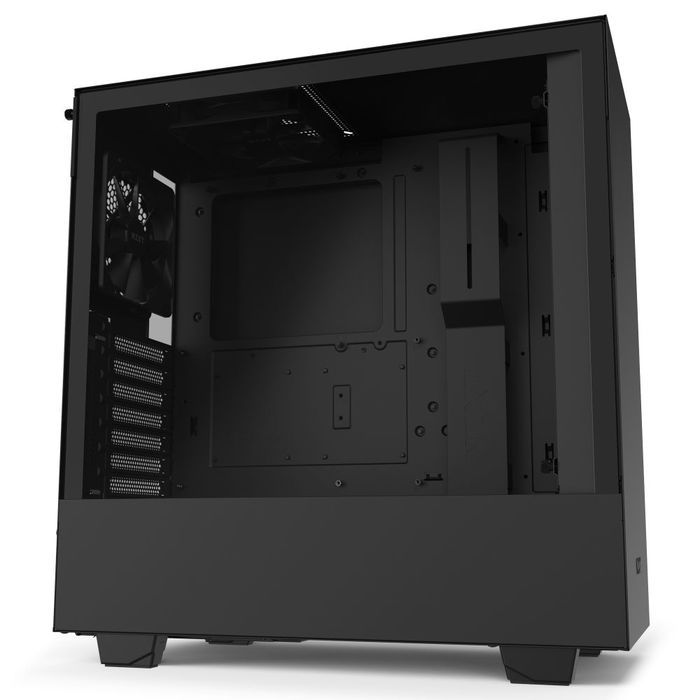

H510

Compact Mid-Tower Case with Tempered Glass

  • We’ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H510i.

  • With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC

  • The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.

  • Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.

  • Two Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removeable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling.
    *Case version fans and specs vary from retail version

Unavailable

$79.99
$69.99
DimensionsW: 210mm H: 435mm D: 428mm (without feet)
W: 210mm H: 460mm D: 428mm (with feet)
Material(s)SGCC Steel, Tempered Glass
Weight6.6 kg
Motherboard SupportMini-ITX, MicroATX, and ATX
Front I/O Ports1x USB 3.1 Gen 2 Type-C
1x USB 3.1 Gen 1 Type-A
1x Headset audio Jack
Front I/O internal header
1x USB 3.1 Gen 2 Internal Header
1x USB 3.1 Gen 1 Internal Header
1x HD Audio Header
FiltersAll Air Intakes
Included AccessoriesInstallation screws
10x Cable ties
1x Headset Audio Jack splitter (4 pole to 3 pole)
Drive Bays2.5”: 2+1
3.5”: 2+1
Expansion Slots7
Radiator SupportFront: 2x 140 or 2x 120mm with Pull
Rear: 1x 120mm
Fan SupportFront: 2 x 120/ 2 x 140mm
Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included)
Rear: 1x 120mm (1 Aer F120 Case Version included)
Fan SpecsAer F120 (Case Version)
Speed: 1200 ± 200 RPM
Airflow: 50.42 CFM
Noise: 28 dBA
Bearing: Rifle Bearing
ClearanceCable Management: 19-23mm
GPU Clearance: Up to 381mm w/o front watercooler installed, up to 325mm with front watercooler installed
CPU Cooler: Up to 165mm
Front Radiator: 60mm
Rear Radiator: 60mm
Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
Warranty2 Years
Model NumberCA-H510B-B1
EAN5060301695058
UPC815671014757
Multi-Language ManualPDF12.7 MBDownload
