H510 Alliance

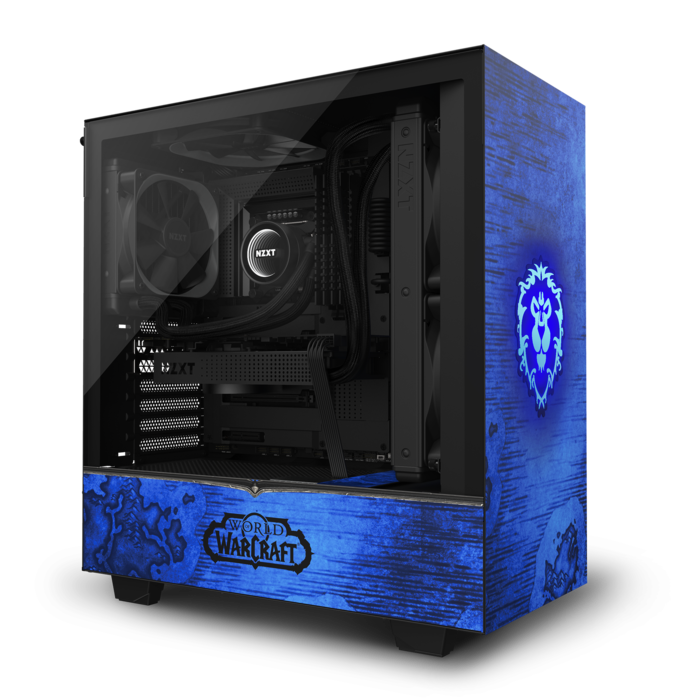

NZXT and Blizzard team up once again to bring you the perfect companion as you descend into the World of Warcraft and join thousands of mighty heroes in a realm of myth, magic, and limitless adventure. This new, limited edition NZXT H510 Alliance case allows you to display both your PC components and your faction pride. This case is themed in the Alliance’s colors, with the backlit logo proudly emblazoned on the front panel. For the Alliance!
With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC
The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.
Two Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling.
*Case version fans and specs vary from retail version
| Dimensions | W: 210mm H: 435mm D: 428mm (without feet) W: 210mm H: 460mm D: 428mm (with feet) |
| Material(s) | SGCC Steel, Tempered Glass |
| Weight | 6.6 kg |
| Motherboard Support | Mini-ITX, MicroATX, and ATX |
| Front I/O Ports | 1x USB 3.1 Gen 1 Type-A 1x Headset audio Jack Front I/O internal header 1x USB 3.1 Gen 2 Internal Header 1x USB 3.1 Gen 1 Internal Header 1x HD Audio Header |
| Filters | All Air Intakes |
| Included Accessories | Installation screws 10x Cable ties 1x Headset Audio Jack splitter (4 pole to 3 pole) |
| Drive Bays | 2.5”: 2+1 3.5”: 2+1 |
| Expansion Slots | 7 |
| Radiator Support | Front: 2x 140 or 2x 120mm with Pull Rear: 1x 120mm |
| Fan Support | Front: 2 x 120/ 2 x 140mm Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included) Rear: 1x 120mm (1 Aer F120 Case Version included) |
| Fan Specs | Aer F120 (Case Version) Speed: 1200 ± 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing |
| Clearance | Cable Management: 19-23mm GPU Clearance: Up to 381mm w/o front watercooler installed, up to 325mm with front watercooler installed CPU Cooler: Up to 165mm Front Radiator: 60mm Rear Radiator: 60mm Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel) |
| Warranty | 2 Years |
| Model Number | CA-H510B-WA |
| EAN | 5060301695881 |
| UPC | 815671016058 |
| Multi-Language Manual | 12.7 MB | Download |
