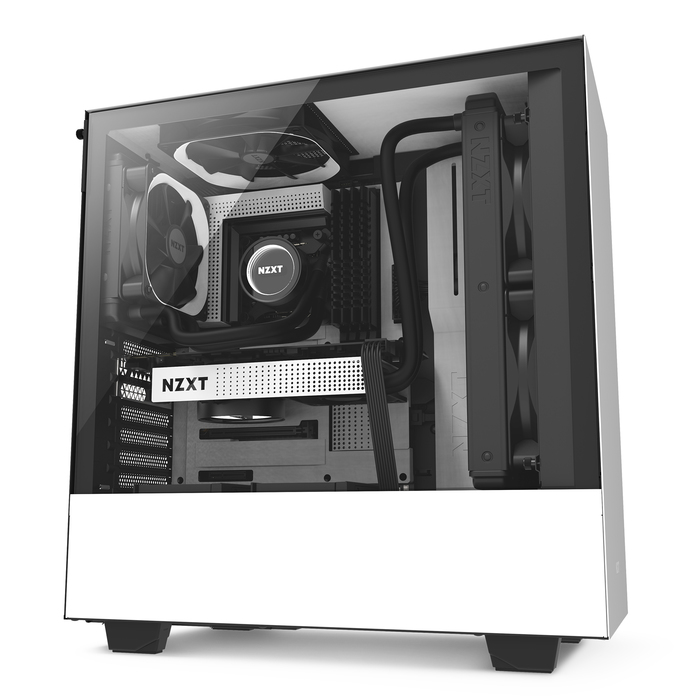

The H500 showcases the signature design of the NZXT H Series cases. The elegant all-steel construction includes the iconic cable management system to streamline building and upgrading your system. You can easily build a powerful system with plenty of options for storage and cooling. The H500 includes two Aer F* fans and a seamless tempered glass side panel.
Premium, all-steel construction with the sleek H Series design; available in four color combinations
Tempered glass panel showcases your build with crisp clarity
System installation and expansion made easy with all-new cable management system
Water-cooling installation simplified for both AIO and custom loop
| Dimensions | W: 210mm H: 435mm D: 428mm (without feet) W: 210mm H: 460mm D: 428mm (with feet) |
| Material(s) | SECC Steel and Tempered Glass |
| Weight | 7 kg |
| Motherboard Support | Mini-ITX, MicroATX, and ATX |
| I/O Ports | 2 x USB 3.1 Gen 1 1 x Audio/Mic |
| Filters | Front right side panel, bottom front and PSU intake |
| Expansion Slots | 7 |
| Drive Bays | 2.5”: 2+1 3.5”: 2+1 |
| Radiator Support | Front: Up to 280mm Rear: 120mm |
| Fan Support | Front: 2 x 120 / 2 x 140mm Top: 1 x 120mm (1 Aer F120 Case Version included) / 1 x 140mm Rear: 1 x 120mm (1 Aer F120 Case Version included) |
| Fan Specs | Aer F120 (Case Version) Speed: 1200 + 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing |
| Clearance | Cable Management: 19-23mm GPU Clearance: Up to 381mm CPU Cooler: Up to 165mm Front Radiator: 60mm Rear Radiator: 60mm Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel) |
| Warranty | 2 Years |
| Model Number | CA-H500B-W1 |
| EAN | 5060301694068 |
| UPC | 815671013750 |
| Multi-language Users Manual | 11.4 MB | Download |
