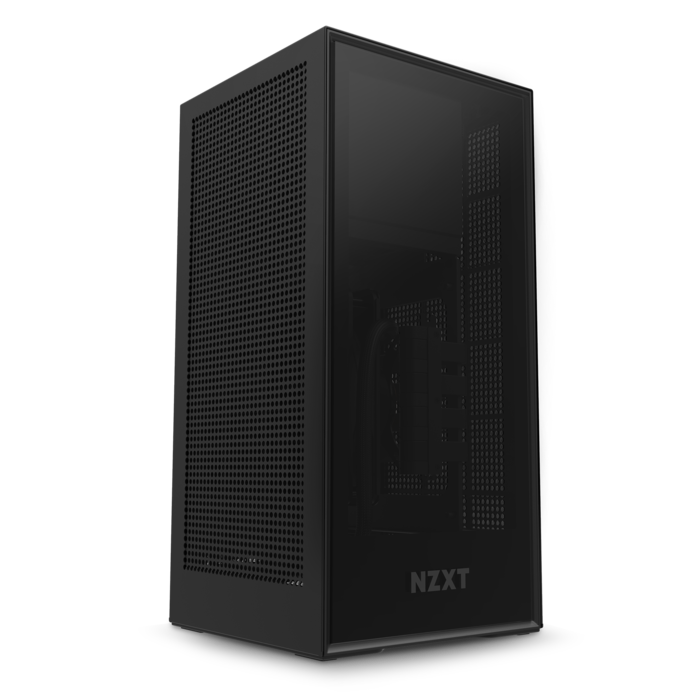

H1

SFF Case with PSU, AIO, and Riser Card

  • The all-new NZXT H1 provides a beautifully small vertical chassis, maintaining full-sized GPU compatibility. The building experience is streamlined, with pre-routed cable channels and an integrated PSU and AIO liquid cooler. The dual-chamber exhaust layout maintains superior cooling for the CPU and GPU, providing each with a dedicated air source.

  • The compact vertical design provides a small spatial footprint while maintaining support for most full-sized GPU’s on the market so you can maintain your desk real estate without sacrificing graphics power.

  • The toolless SSD tray and riser card are incredibly simple to install. In addition to pre-routed cables, the motherboard I/O faces down, routing all cables through the bottom of the case for a clean, simplified appearance.

  • Integrated power supply and AIO liquid cooler provide a better build experience, along with pre-routed cables that make it easy to manage the clutter and cut down on build time. An integrated PCIe Riser card is also included for vertical GPU mounting.

  • The dual-chamber airflow is thermally designed to allow the CPU, GPU, and PSU to pull in fresh air, and exhaust hot air without affecting temperatures of neighboring components.

Unavailable

$349.99

Add $19.01 for free shipping.


Limit 1 per customer
DimensionsW: 187mm H: 387.7mm D: 187.6mm
Material(s)SGCC Steel and Tempered Glass
Weight6.53kg
Motherboard SupportMini-ITX (Increased Wi-Fi compatibility with a wired antenna)
CPU & SocketIntel: 115X
AMD: AMD4, FM2+, FM2, FM1, AM3+, AM3, AM2
Front I/O Ports1x USB 3.1 Gen 2 Type-C
1x USB 3.1 Gen 1 Type-A
1x 4 Pole Headset Audio Jack
FiltersAll Air Intakes
Included Accessories650W SFX-L 80Plus Gold Fully Modular Power Supply (NP-S650M)
  • Intel SFX 12 V / ATX 12 V
  • Fully Modular
  • Fan: 120mm FDB Fan
  • 80 PLUS Gold Certified
  • 10 Years Warranty
  • AC Input Full Range
  • Operating Temperature: 0-40 °C
  • MTBF @ 25 °C, excl. fan 100,00 hours
  • Protection: OPP, OVP, UVP, OCP, OTP, SCP

  • 140mm AIO Liquid Cooler
  • Radiator: W173.5 X H138.5 X 22MM
  • Pump:
  • W65 x H65 x D27mm
  • 4200 ± 420 RPM
  • CPU Socket:
  • Intel: 115X
  • AMD: AMD4, FM2+, FM2, FM1, AM3+, AM3, AM2
  • Aer P140mm PWM fan: 500~1,800 ± 300 RPM
  • Noise: 21~38dBA
  • PCIe 16x Gen3 High-Speed Riser Card
  • PCI Express x16
  • Version: 3.0
  • High-speed passed
  • Cable length: 315mm
  • Expansion Slots2
    Drive Bays2.5": 2
    Radiator Support1x 140mm (Integrated AIO 140mm Liquid Cooler for CPU)
    ClearanceGPU Clearance:
    • Dimension - 305mm x 128mm; 265mm x 145mm
    • Thickness - Up to 2.5 Slots

    Memory Height: 45mm
    Warranty3-year warranty on case, riser card, and AIO
    10-year warranty on PSU
    Model NumberCA-H16WR-B1
    UPC815671016072 (CN)
    815671016089 (BR)
    815671016096 (AR)
    815671016102 (US)
    815671016119 (EU)
    815671016126 (UK)
    815671016133 (AU)
    815671016157 (JP)
    815671015082 (TW)
    815671016140 (WO)
    EAN5060301695904 (CN)
    5060301695911 (BR)
    5060301695928 (AR)
    5060301695935 (US)
    5060301695942 (EU)
    5060301695959 (UK)
    5060301695966 (AU)
    5060301695980 (JP)
    5060301695515 (TW)
    5060301695973 (WO)
    NZXT CAMDownload
    Multi-Language ManualPDF10.4 MBDownload
