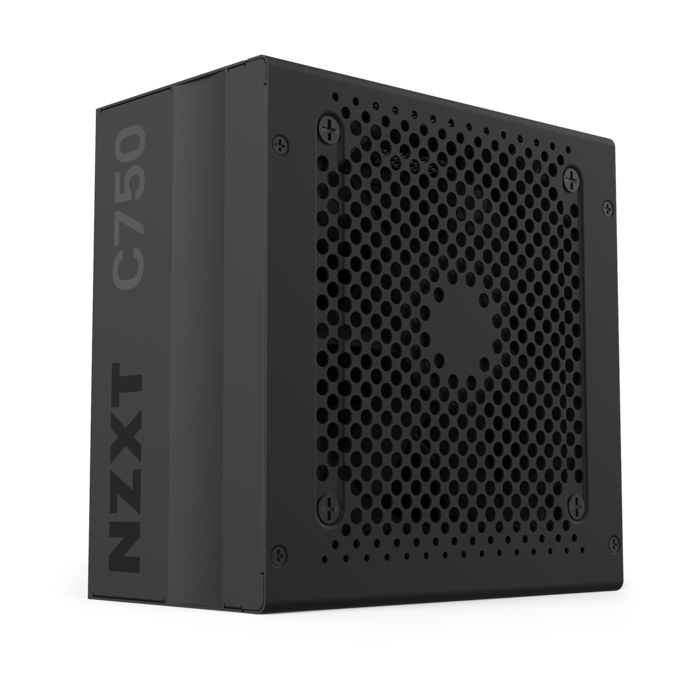

The NZXT C750 Gold is a black, modular computer power supply with ventilation holes on one side, the C750 label on top, delivers 750W of power, and supports Zero RPM Fan mode for silent operation.

The NZXT C750 Gold is a black modular power supply with multiple labeled ports, vent holes on top, Zero RPM Fan mode for silent operation, and C750 Gold branding on the side.

The NZXT C750 Gold is a black, fully modular 750W power supply for computers. It features branding on the side, a power switch, power socket, ventilation holes, and Zero RPM Fan mode for silent operation.

The NZXT C750 Gold power supply has a modular design with clearly labeled ports for motherboard, CPU & PCI-E, and peripheral & SATA connections. It includes Zero RPM Fan mode and warns against using modular cables from other brands.

C750 Gold

750W Gold Fully Modular ATX PSU

4.4

Rated 4.4 out of 5 stars

4.4 Stars (12 Reviews)

$118.99

$139.99

$21 Off

Color:Black

Variant

Key Specs

Model Name: PA-7G1BB-US
Compatible Devices: Monitor, Personal Computer
Connector Type: ATX
Output Wattage: 750 Watts
Form Factor: ATX
Wattage: 750
Cooling Method: Air
Item Dimensions (L x W x H): 9 x 5 x 13 inches
Item Weight: 4 Pounds

Inside the Box

C750 Power Supply
24-Pin ATX Power Cable
4+4-Pin CPU Power Cables x2
6+2-pin PCIe Power Cable x3
SATA Cables x2
Peripherals Cables x2
6-32 Screws x4
AC Power Cord

Warranty & Return Policy

NZXT Product Warranty Length click here
NZXT.com Store Returns/Exchange Policy

Eligible products qualify for a refund or exchange only with an authorized RMA number and the item is returned to the NZXT.com Store inventory within 30 days of purchase. Returns are not allowed beyond 30 days of the purchase date.

The NZXT.com Store reserves the right to deny any return or exchange. Refunds will be credited to the original method of payment. To initiate a return, simply submit a request.

Resources

Manuals & Documentation

Overview

This PSU delivers 750 watts of clean, stable power which is plenty for most gaming needs while providing headroom for future upgrades and is an ideal wattage to start overclocking.

Modular design lets builders use only the cables they need
The sleeved main cables resist heat damage as well as fraying
Fits any case conforming to the ATX standard
Supports NVIDIA GPUs up to 3090 and AMD GPUs up to RX 6800 XT
Zero RPM Fan mode silences the fan under low-load conditions
Dynamic 135mm fluid-dynamic bearing fan
10-year warranty

Tech Specs

Width

150 mm

Height

86 mm

Depth

150 mm

Wattage

750 W

Form Factor

ATX

ATX Version

2.52

80 PLUS Rating

Gold

Materials

Steel, PCB and plastic

24-pin ATX Power Cable

600 mm (1), nylon sleeving

4+4-pin CPU Power Cable

700 mm (2), nylon sleeving

6+2-pin PCIe Power Cable

650 + 150 mm (6), nylon sleeving

SATA Cable

500 + 150 mm (6)

Peripherals Cable

500 + 150 mm (6)

100 – 240 Vac

10 – 5 A, 50 – 60 Hz

+3.3 V and +5 V

22 A (120 W)

+12 V

62.5 A (750 W)

-12 V

0.3 A (3.6 W)

5VSB

3 A (15 W)

Total

750 W

80 PLUS Rating

Gold

20% Load

89.20% @ 115 V

50% Load

90.80% @ 115 V

100% Load

87.73% @ 115 V

Size

135 mm

Type

PWM

Speed

0 – 2,300 ± 10% RPM

Airflow

93.02 CFM (Typ.)

Noise Level

44.5 dBA (max)

Bearing

Fluid dynamic bearing

MTBF

100,000 hours

Temperature

0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C)

PF Correction

Active @ 0.96

Protections

OVP (Over Voltage), UVP (Under Voltage), SCP (Short Circuit), OTP (Over Temperature), OPP (Over Power), OCP (Over Current)

Warranty

10 years

Compliance Standard

ATX12V v2.52 / EPS12V v2.92

Regulation & Certification

cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB / (IEC 950/62368-1) / CCC / CEC / BSMI / RCM / EAC / CE / LVD / UKCA

Model Number

PA-7G1BB

UPC

815671017253 (TW) / 815671017185 (CN) / 815671017192 (AR) / 815671017208 (US) / 815671017215 (EU) / 815671017222 (UK) / 815671017239 (AU) / 815671017246 (JP) / 815671017277 (WO) / 815671017260 (IN)

EAN

5060301697564 (TW) / 5060301697496 (CN) / 5060301697502 (AR) / 5060301697519 (US) / 5060301697526 (EU) / 5060301697533 (UK) / 5060301697540 (AU) / 5060301697557 (JP) / 5060301697588 (WO) / 5060301697571 (IN)

4.4

Rated 4.4 out of 5 stars

Based on 12 reviews

92%would recommend this product

Total 5 star reviews: 8 Total 4 star reviews: 3 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 1

12 reviews

Sort

S
Spike
I recommend this product
Rated 5 out of 5 stars
8 months ago
Muy buena Fuente pero
si es muy buena, solo q acabo de hacer un cambio desde la 750 ti a la 5070 rtx 12gb con 3 fan , y no arranca, todo apunta q es la fuente, es La tecnología ATX 3.0 que salio en el 2022 y esta fuente no pudo chapara dicha tecnología para la nueva generación
Was this helpful?
W
WaiisoSerious
Verified Reviewer
I recommend this product
Rated 4 out of 5 stars
11 months ago
5070ti no issue
the guy below me said he had issues with his 5070 ti and the PSU not being able to start it?
im playing games ultra settings with no issue with this C750... if anything (besides it not being the newer ATX 3.1 standard) seems to be the issue it's the AM4 platform im still on but the PSU is handling perfectly fine! sorry to hear for the guy below me tho...
Was this helpful?
T
TheDictator
Verified Reviewer
I do not recommend this product
Rated 1 out of 5 stars
11 months ago
All is good, but...
All that would be fine, but 750 watts is not. 5070ti won't start with this PSU, although it should.
Was this helpful?
AL
Andrew L.
I recommend this product
Rated 4 out of 5 stars
2 years ago
Fits a bit tight with
Fits a bit tight with cables attached, being used in the h5 elite, but once it's in it runs like a dream
Was this helpful?
MG
malcolm g.
I recommend this product
Rated 5 out of 5 stars
2 years ago
Great buy would recommend to
Great buy would recommend to anyone starting out
Was this helpful?
