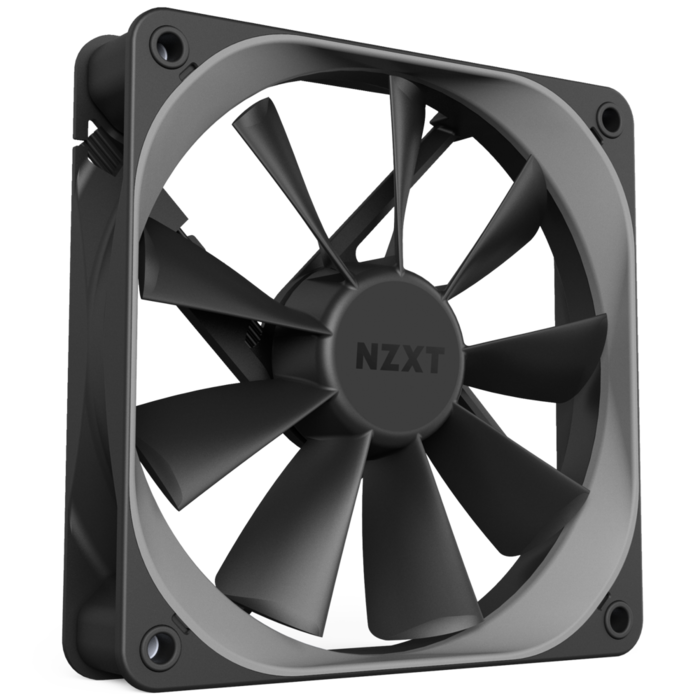

The Aer F performance fan is designed to maximize airflow through your build. Engineered to move air efficiently, it features a chamfered intake and exhaust for high volume airflow, and winglet-designed blades to reduce drag. The Aer F uses fluid dynamic bearing to provide silent operations, long-lasting durability, and powerful cooling performance with color customization.
Optimized for high-performance airflow
PWM fan with optimized cooling and whisper-soft 22 dBA
Winglet designed fan blades and chamfered intake and exhaust
Fluid dynamic bearing engineered to last over six years
Sleeved cables and vibration dampeners
Changeable color trim available in blue, red, and white (sold separately)
| Dimensions | Aer F120: 120 x 120 x 26mm Aer F140: 140 x 140 x 26mm |
| Material(s) | Plastic, Rubber |
| Fan Speed | Aer F120: 500~1,500 +/- 200 RPM Aer F140: 500~1,500 +/- 200 RPM |
| Fan Airflow | Aer F120: 21.01~63.02 CFM Aer F140: 34.48~103.43 CFM |
| Fan Air Pressure | Aer F120: 0.13~1.24mm-H2O Aer F140: 0.15~1.42mm-H2O |
| Fan Noise Level | Aer F120: 22~31dBA Aer F140: 21~35dBA |
| Fan Bearing | Fluid Dynamic Bearing (FDB) |
| Fan Rated Voltage | Aer F120: 12V DC, 0.18A, 2.16W Aer F140: 12V DC, 0.32A, 3.84W |
| Fan Connector | 4-pin PWM |
| Fan Life | 60,000 hours / 6 Years |
| Warranty | 2 years |
| Model Number | RF-AF120-B1(Aer F120) RF-AF120-D1(Aer F120 Twin Pack) RF-AF140-B1(Aer F140) RF-AF140-D1(Aer F140 Twin Pack) |
| UPC | 815671013187(Aer F120) 815671013217(Aer F120 Twin Pack) 815671013194(Aer F140) 815671013224(Aer F140 Twin Pack) |
| EAN | 5060301693528(Aer F120) 5060301693542(Aer F120 Twin Pack) 5060301693535(Aer F140) 5060301693559(Aer F140 Twin Pack) |
