Large babe4d3d1e9e9571

Source 220

Color: Matte Black


$ 4999

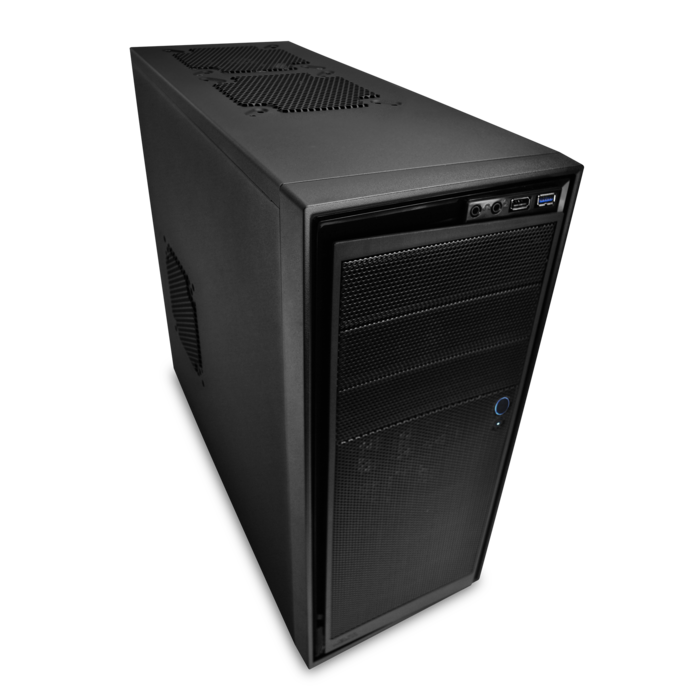

Product overview

  • Brushed aluminum finish and matte steel mesh designed for glossy look and airflow
  • 5.25” and 3.5” Screwless
  • Design for easy setup or removal of optical drives and HDD
  • USB 3.0 for up-to-date high speed data transfer
  • One 120mm and 140mm fans included for maximizing cooling potential
  • CPU cut-out for easy installation/removal of heatsinks
  • Easy cable management for routing cables to enable better airflow inside your system

SizeMid Tower
Model NumberCA-SO220-01 Black
CA-S220W-B2 (Blue LED Fans)
CA-S220W-B3 (Red LED Fans)
CA-S220W-B4 (White LED Fans)
Drive Bays3 Tool-less EXTERNAL 5.25" DRIVE BAYS
8 Tool-less INTERNAL 3.5" HDD Drives
Cooling SystemFRONT, 2 X 120mm
REAR, 1 X 120mm @ 1200rpm (included)
TOP, 2 X 120/140mm (1x 140mm included)
BOTTOM, 1 x 120mm
ClearanceCPU Heatsink Support 160mm
VGA Clearance Maximum 230mm w/ hard drive, 330mm w/o hard drive
Dimensions195mm(W) x 450mm(H) x 495.5mm(D)
MaterialSECC Steel, ABS Plastic
Motherboard SupportATX, MICRO-ATX
Expansion Slots7
External Electronics1 x Standard Audio/Mic, 1 x USB 3.0,1 x USB 2.0
Product Weight6.5 kg
Warranty2 Years

by The Last ResortSmall thelastresort

overall I think this is a brilliant case that's perfect for anyone on a budget and would rather spent more money on what's inside of the case. more..

by Overclockers.comSmall overclockers

Given the features this case offers at the price point it hits, I can easily recommend this case for use as a budget gaming system, or even for a workstation in an office environment. more..

by Hi Tech LegionSmall hitechlegion

The Source 220 has a simple and elegant look and design that can appeal to anyone's visual tastes. more..

by Tech Power UpSmall techpowerup

Essentially the Source 220 is the exact same chassis as the Source 210 Elite, but with a metal mesh front, allowing for better airflow more..

by Hardware SecretsSmall hardwaresecrets

in our opinion. [Source 220] supports an additional fan, allows you to move the side fans to better match the components you want to cool down, and has an air filter for the optional front fans. more..

by TweakTownSmall tweaktown

The Bottom Line: A perfect solution to the quandary of Source 210 Elite or Tempest 210. Just grab the Source 220 and get the best of both offerings in one package! more..

by Overclocker's Club (OCC)Small overclockersclub

This might be the NZXT case for you. Way to go NZXT on the Source 220! more..

Source 220 Wallpaper 1920x1080JPG116 KBDownload
Source 220 Wallpaper 1680x1050JPG103 KBDownload
Source 220 Wallpaper 1440x900JPG77.7 KBDownload
Source 220 Wallpaper 1280x1024JPG86.5 KBDownload
Source 220 ManualPDF4.38 MBDownload


The Source 220 outdoes its little brother in style and performance, while keeping the affordable charm that the Source 210 brought to the PC building world.

S220 images 01


With room for an extra fan, the Source 220 comes equipped with both 140mm top and 120mm rear exhaust fans and is prepared to accept up to six fans for optimal mid tower cooling performance.

S220 images 02


The Source 220 utilizes a nearly all mesh front panel to increase case airflow and deliver a new take on the classic three-bay front panel.

S220 images 03


Hi Tech Legion Editor's Choice Gold
OCC Silver
Overclockers Approved
Tech Power Up Recommended
The Last Resort Silver
TweakTown Best Features
Hardware Secrets Silver Award
