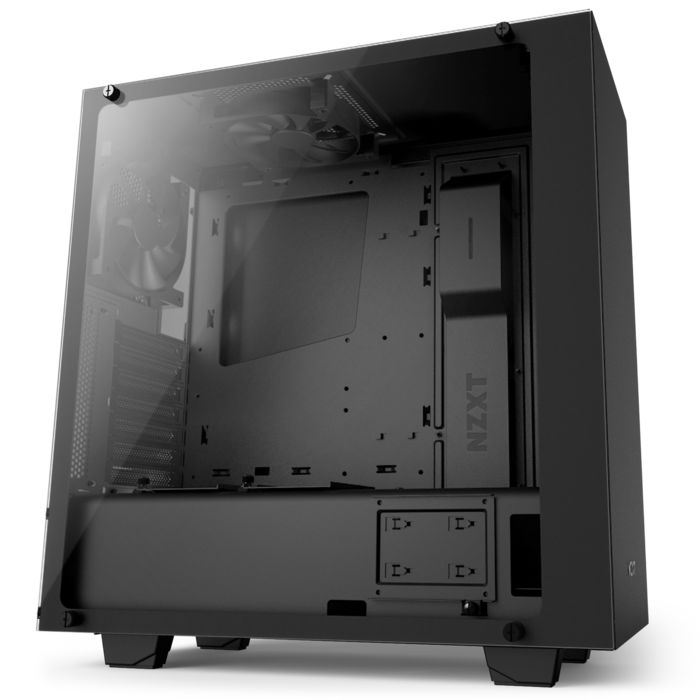

Expanding on the S340’s renowned durability, the S340 Elite features a tempered glass panel to showcase builds with crisp clarity. The top IO panel has been optimized with an HDMI port and additional USB ports for a streamlined VR experience. It includes a magnetic cable management puck to conveniently store VR or audio headsets with fast and flexible mounting access. The S340 Elite is strong, compact, and takes the S340 chassis to new heights.
Steel chassis and tempered glass construction
Cable management optimized for a simple and hassle-free build
Streamlined VR access with HDMI and USB 3.0 from the top IO
Easy-to-use headset and VR cable management puck
Full Kraken Series cooler support up to 280mm
Integrated PSU shroud with three SSD mounts
Fully filtered, easy-to-remove intake
| Dimensions | W: 203mm H: 474mm D: 432mm |
| Material(s) | Tempered glass side panel, Steel, ABS plastic |
| Weight | 8.13kg |
| Motherboard Support | mini-ITX, MicroATX, ATX |
| I/O Ports | 1x Audio/Mic 2x USB 3.0 2x USB 2.0 HDMI with VR Support |
| Filters | Front (Included) Bottom Rear(Included) |
| Drive Bays | Internal 3.5": 2+1 Internal 2.5": 3+1 |
| Expansion Slots | 7 |
| Fan Support | Front: 2x 140/2x120mm Top: 1x 140/120mm (1 x 120mm FN V2 Fans Included) Rear: 1x 120mm (1 x 120mm FN V2 Fan Included) |
| Radiator Support | Front 2 x 140 or 2 x 120mm Rear 1 x 120mm |
| Clearance | GPU Clearance With Radiator: 334mm GPU Clearance Without Radiator: 364mm CPU Cooler: 161mm Cable Management: Lowest Point - 17mm; Highest Point 168mm |
| Warranty | 2 years |
| Model Number | CA-S340W-B3 |
| UPC | 815671012890 |
| EAN | 5060301693221 |
| Multi-language Manual | 12.7 MB | Download |
Bit Tech
09/29/2016
The S340 Elite is a brilliant evolution of an already solid chassis design. The upgraded materials, nifty little features targeting VR users and improved cable management system are all welcome additions that make the case feel truly refreshed and modern. The build quality is high, and out-of-box cooling performance is very impressive too. more..
