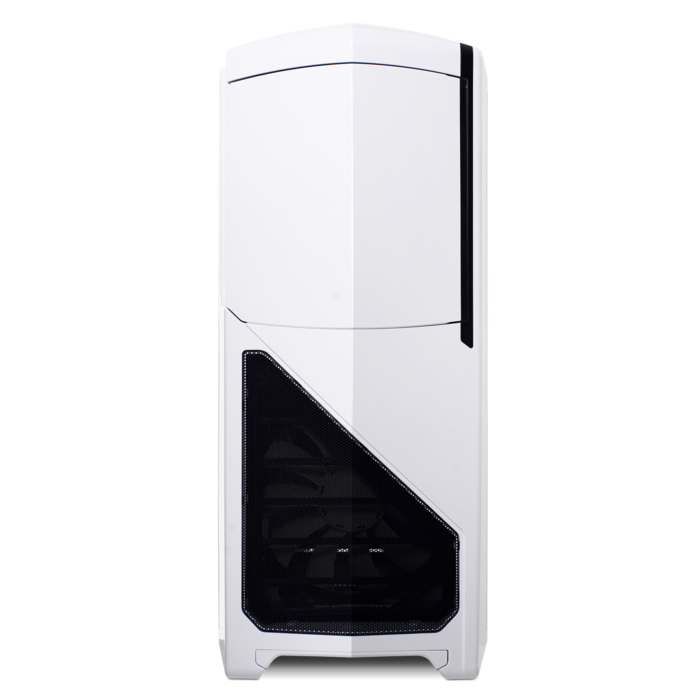

Phantom 630

Uncompromising Phantom EATX Ultra-Tower for builders and gamers

  • Next generation Phantom design, both inside and out.
  • Fully modular internal drive bays allows you to customize the Phantom 630’s layout to suite your needs.
  • Split-level motherboard tray allowing increased rear cable management.
  • Dual SSD mounts behind the motherboard tray High-end water cooling support allows use of multiple radiators and multiple radiator sizes.
  • Integrated high-power 30-watt single-channel fan controller.
  • Rear-mounted fan hub for simple and clean fan control installation.
  • Easily removable dust filters protect your components Illuminates rear I/O ports internal components with a flick of a switch.
  • Full external peripheral support with multiple USB 3.0, 2.0 connections and an integrated SD card reader.
SizeUltra Tower
Model NumberCA-P630W-W1 Glossy White
CA-P630W-M1 Matte Black
CA-P630W-G1 Gunmetal
Drive BaysExternal 5.25" x 4 (Tooless)
Internal 3.5"/2.5": 8(2 x 2.5" behind MB) 1 x 3HDD cage, 1 x 2HDD cage, 1 x 1HDD cage (Fully Modular)
Fan SupportFront 1 x 200 or 2 x 140 or 2 x 120mm ( 1 x 200mm included ) 800rpm
Top 2 x 200 or 2 x 140 or 3 x 120mm ( 1 x 200mm included) 800rpm
Rear 1 x 140/120mm (1 x 140mm included) 1,000rpm
Bottom 2 x 140/120mm
HDD Pivot 1 x 140/120mm
FiltersFront (Included)
Top dual 200mm filters (Included)
Bottom Front (Included)
Bottom Rear (Included)
Radiator SupportFront 1 x 140 or 2 x 120mm
Top 2 x140 or 3 x 120mm
Bottom 2 x 140/120mm
Rear 1 x 140/120mm
HDD Pivot 1 x 140/120mm
ClearanceCPU Cooler 200mm
VGA Card 325mm/507mm (Without HDD cage)
Cable Management 36.6mm
Dimensions245mm(W) x 627mm(H) x 600mm(D)
SECC Steel, ABS Plastic
Motherboard SupportATX, Micro-ATX, XL-ATX, EATX (347mm x 272mm)
Expansion Slots9
I/O Ports1 x Audio/Mic
2 USB 2.0, 2 x USB 3.0
SD Card Reader With SDHC & SDXC Support
I/O Panel LED On/Off
Single Channel 30-watt Fan Control (3-speeds)
Product Weight12 kg
UPC815671011480 (White)
815671011497 (Gunmetal)
815671011503 (Black)
EAN5060301690732 (White)
5060301690749 (Gunmetal)
5060301690756 (Black)
Warranty2 years
Phantom630 1920x1080JPG101 KBDownload
Phantom630 1680x1050JPG93.8 KBDownload
Phantom630 1280x1024JPG81.6 KBDownload
1440x900 Wallpaper JPG0 BytesDownload
Phantom 630 ManualPDF9.23 MBDownload
