N7 Z370

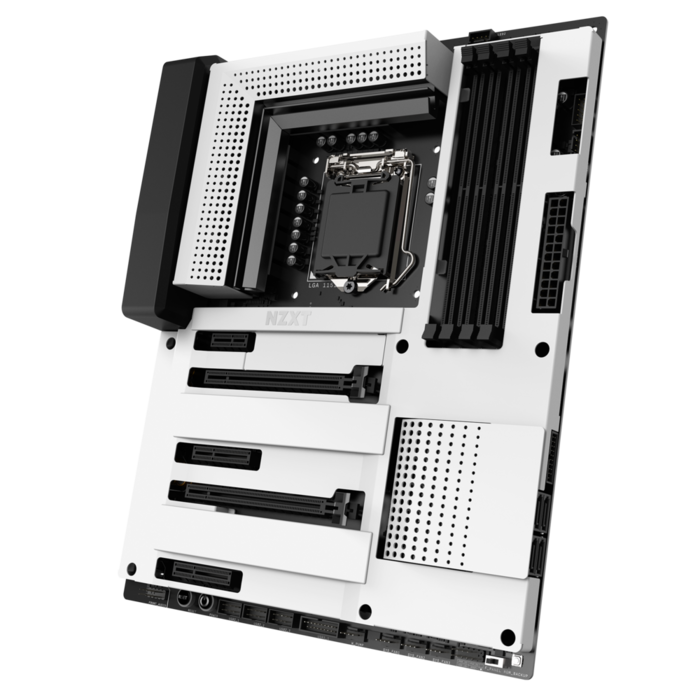

Intel Z370 Gaming Motherboard with CAM

  • Leveraging more than 12 years of experience as professional PC builders, we’ve designed the N7 motherboard around Intel’s Z370 chipset and delivered everything you need to build a powerful, stunning gaming PC.

    All the essentials are included, along with a built-in digital fan controller and integrated RGB lighting channels. The all-metal motherboard cover perfectly matches the color and finish of your case, creating a visually seamless backdrop for your components. Using CAM, you can take full control over your system’s lighting, cooling, and performance.

    You can’t build a quieter, better-looking system as easily as you can with the new N7.

  • Designed with Intel® Z370 Express Chipset

  • CAM-powered features simplify setup and control of RGB lighting and fans

  • Intel® Optane™ Memory Ready with two M.2 connectors

  • GRID+ digital fan control: convenient fan profiles within CAM for nine independent fan channels

  • Multi-GPU support with NVIDIA® SLI™ and AMD CrossFireX™ Technology

  • Compatible with Intel® 8th Generation Core™ i7, Core™ i5, and Core™ i3 processors

  • Gen 1 RGB digital RGB lighting control: advanced lighting with numerous presets and custom modes

  • Clean customization: all-metal cover available in black and white, and heatsink covers available in a glossy blue, red, or purple finish to color coordinate any build

  • Efficient layout ensures straightforward and optimal setup with easy upgradeability

  • Adaptive Noise Reduction optimizes cooling and noise balance for best gaming comfort

CPU & SocketLGA socket 1151 for Intel® 8th Generation Core™ i7/ Core™ i5/ Core™ i3 Processors
Support Intel 14nm CPU
Support Intel Turbo Boost Technology 2.0
ChipsetIntel® Z370
Memory4 x DIMM, Max. 64GB, DDR4
• 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133 MHz Non-ECC, Un-buffered Memory
• Dual-channel memory architecture
• Support Intel® Extreme Memory Profile (XMP)
Integrated GraphicsMulti-VGA output support: HDMI/DisplayPort 1.2 ports
• DisplayPort with max. resolution of 4096x2304@60Hz
• HDMI™ with max. resolution of 4096x2160@24Hz
• Maximum shared memory of 1024MB
Multi-GPU Support• Supports NVIDIA® 2-Way SLI™ Technology
• Supports AMD 2-Way CrossFireX™ Technology
StorageIntel® Z370 Express Chipset
• 1 * M.2 type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode)
• 1 * M.2 type 2242/2260/2280 (PCIe 3.0 x4 mode only)
• 4 * SATA 6Gb/s ports
Support RAID 0/1/5/10
Supports Intel® Smart Response Technology
Intel® Rapid Storage Technology 15
Intel® Optane Memory Ready
LANIntel® I219-V Gigabit LAN
AudioRealtek® ALC1220 Codec w/ Nichicon Gold Capacitors
7.1-Channel High Definition Audio, 32-bit / 192KHz DAC
Expansion Slots• 2 * PCIe 3.0 x16 (x16 or dual x8)
• 2 * PCIe 3.0 x4
• 1 * PCIe 3.0 x1
Rear I/O• 5 * USB 2.0 ports
• 4 * USB 3.1 Gen 1 ports
• 1 * DisplayPort 1.2
• 1 * HDMI™ 1.4b
• 1 * Clear CMOS button
• 1 * LAN (RJ45) port
• 1 * Optical S/PDIF Out port
• 1 * 7.1-Channel Audio jacks
Internal I/O• 1 * 24-pin EATX power connector
• 1 * 8-pin ATX 12V power connector
• 1 * 4-pin CPU_FAN connector
• 1 * 4-pin AIO_PUMP connector
• 1 * 4-pin W_PUMP connector
• 6 * 4-pin SYS_FAN connectors (Up to 6W per channel)
• 3 * USB 2.0 header (Up to 6 USB 2.0 ports)
• 2 * USB 3.1 Gen1 header (Up to 4 USB 3.1 Gen 1 ports)
• 4 * SATA 6Gb/s connectors
• 1 * M.2 Socket 3 with M Key, (PCIe 3.0 x4 & SATA mode)
• 1 * M.2 Socket 3 with M Key, (PCIe 3.0 x4 mode only)
• 2 * RGB LED connectors
• 1 * Noise detection module
• 1 * Front panel audio connector
• 1 * Power button
• 1 * Reset button
• 1 * ROM backup button
• 1 * Dual BIOS switch
Included Accessories• 1 * User’s manual
• 1 * I/O shield
• 4 * SATA data cables
• 1 * NZXT SLI bridge
• 2 * 500mm LED connection cable
• 2 * 300mm LED extension cable
• Mounting screws
Operating SystemMicrosoft® Windows® 10 (64-bit)
Form FactorATX
Dimensions305 x 244 x 43mm
Regulations & Certifications (EMC & Safety)FCC, CE, WHQL, ErP/EuP Ready
Model NumberN7-Z37XT-W1
Warranty4 Years
NZXT CAMDownload
N7 Z370 CPU Support ListPDF151 KBDownload
BIOS Version 1.0.3 (04.10.19)ZIP5.62 MBDownload
BIOS Post CodesPDF741 KBDownload
Memory QVL (04.18.18)PDF138 KBDownload
Intel Chipset DriversZIP3.64 MBDownload
Getting Windows 10 Up and Running GuidePDF631 KBDownload
BIOS Version 1.0.1 (03.28.18)ZIP5.02 MBDownload
Realtek Audio DriversZIP273 MBDownload
Multi-language Users ManualPDF13.8 MBDownload
BIOS Version 1.0.2 (11.29.18)ZIP8.18 MBDownload
Intel Optane MemoryZIP12.5 MBDownload
Intel LAN DriversEXEDownload
Intel ME DriversZIPDownload
Intel RST DriversEXEDownload
Intel Graphic DriversEXEDownload

Tom's HardwareSmall tomshardware 05/16/2018

NZXT’s N7-Z370 is an amazingly solid premiere motherboard product. more..

Play3r.netSmall d537c88388e26559 05/16/2018

One of the best overall looking motherboards around, not just on Z370...With a built-in fan hub with support for up to 7 fans in total on the board, and with CAM and Hue+ RGB software support, I believe NZXT’s first PC component is worth shouting about. more..

eTeknixSmall eteknix 05/16/2018

If you’re buying this motherboard for a gaming system, you’re going to be very happy with what it has to offer. more..

AnandtechSmall anandtech 05/16/2018

...the appearance is unlike the other boards...The BIOS on the N7 offers the vast majority of overclocking options people need ... more..
