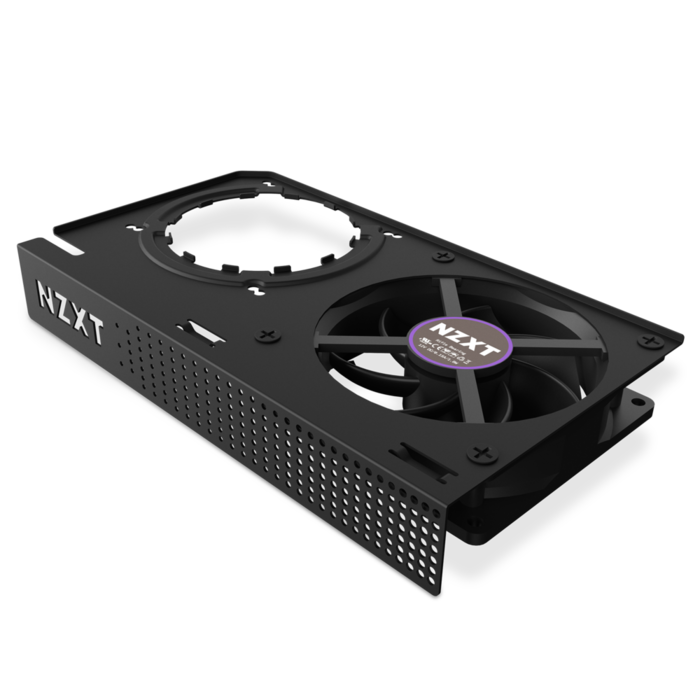

Quickly mount any Kraken X Series liquid cooler onto graphics cards with the Kraken G12 mounting kit. It delivers a 40% increase in cooling capacity over stock cooling, and features a newly designed bracket with an easier installation process versus the Kraken G10. Plus, the G12 is compatible with more than 30 liquid coolers on the market.
Supports the latest Kraken Z63/Z73/X53/X63/X73/X42/X52/X62/X72
Convert GPU’s stock cooling to liquid cooling with 40% increase in cooling capacity
Supports both AMD and NVIDIA graphics cards–reference and most non-reference design
Compatible with over 30 liquid coolers and 40 different GPUs
92mm fan for active VRM cooling with space for aftermarket VRM heatsinks
|Dimensions||201 x 113 x 32 mm|
|Material(s)||Steel and Plastic|
|Fan Dimensions||92 x 92 x 25 mm|
|Fan Speed||1,500 RPM|
|Fan Bearing||Rifle Bearing|
|Fan Rated Voltage||12V DC, 0.18A, 2.16W|
|Compatibility - Graphics Cards||Nvidia|
GeForce RTX* 2080**, 2080 Ti**, 2070**, Titan X, Titan, Geforce GTX 1080 Ti, 1080, 1070, 1060, 980 Ti, 980, 970, 960, 780 Ti, 780, 770, 760***, 680, 670, 660Ti, 660, 580, 570
RX 590, 580, 570, 480, 470, R9 390X****, 390***, 380X****, 380, 290X****, 290****, 285***, 280X****, 280****, 270X, 270, R7 370, HD7970****, 7950****, 7870, 7850, 6970, 6950, 6870, 6850, 6790, 6770, 5870, 5850, 5830
*RTX uses the "A" brackets for mounting
**Supports referenced-based design only.
***Supports long PCB variant only due to PCIe power connector interference.
****Some variations in AMD die height may require the use of a copper shim which is not included.
|Known Incompatibility - Graphics Cards||Nvidia|
GeForce RTX 2060
RX Vega 64
|Compatibility - AIO Liquid Coolers||NZXT|
Kraken Z73, Z63, X73, X63, X53, X72, X62, X52, X42, X61, X41, X31, X60, X40
H105, H110, H90, H75 (CW-9060015-WW only), H55, H50 (CW-906006-WW only)
Water 3.0 Riing RGB 360, 280, 240, Red 280, 140,
Water 3.0 Ultimate, Extreme S, Extreme, Pro, Performer
Water 2.0 Extreme, Pro, Performer
KUHLER H2O 920V4, 620V4, 920, 620
LQ-320, LQ-315, LQ-310
|Model Number||RL-KRG12-W1 (Matte White)|
RL-KRG12-B1 (Matte Black)
|UPC||815671013286 (Matte White)|
815671013293 (Matte Black)
|EAN||5060301693610 (Matte White)|
5060301693627 (Matte Black)
|NZXT.com Store Returns, Exchange, Parts Policy||Eligible products qualify for a full refund or exchange only with an authorized RMA number and the item is returned to the NZXT.com Store inventory within 30 days of purchase. Returns are not allowed beyond 30 days of the purchase date. The NZXT.com Store reserves the right to deny any return or exchange. Refunds will be credited to the original method of payment. To initiate a return, simply submit a request at firstname.lastname@example.org. If you are purchasing any items that are discontinued, please be aware that we may no longer carry parts for those items. We apologize for the inconvenience. They will come as is. If you have issues upon receiving your case, please contact us as soon as possible.|
If you need the AM4 Bracket here’s how to obtain one.Click here
