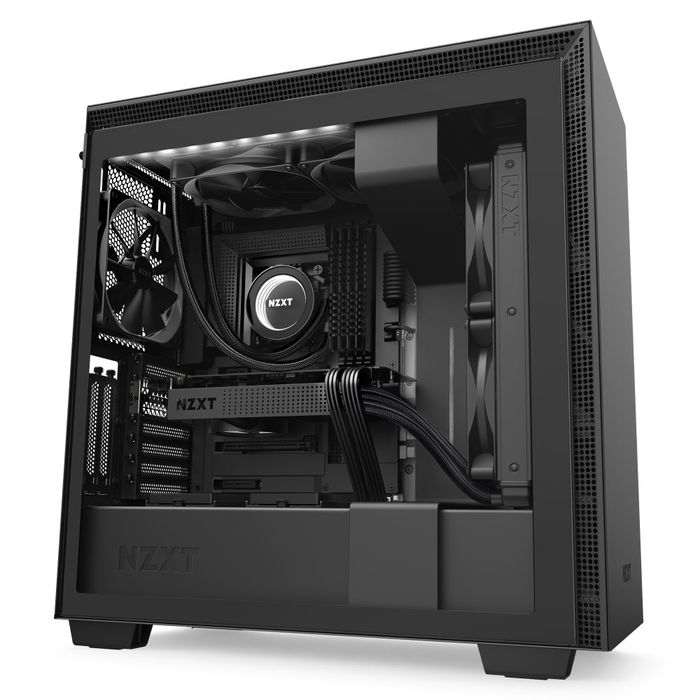

We’ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H710i.
The new Smart Device V2 includes a faster microprocessor for NZXT CAM-powered control of two HUE 2 RGB lighting channels and three fan channels that support either voltage regulated or PWM fans.
With a USB 3.1 Gen 2-compatible USB-C connector on the front panel, it’s easier than ever to connect the newest smartphones, high-speed external storage, or the latest peripherals to your PC.
The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and fans to create your dream PC.
Cable management can take more time than assembling a system. Our patented cable routing kit with pre-installed channels and straps makes wiring easy and intuitive.
Four Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a reversible,removeable, top-mounted bracket designed for radiators up to 360mm simplifies the installation of either closed-loop or custom-loop water cooling.
*Case version fans and specs vary from retail version
Show off your graphic card with a built-in mounting bracket for installing your GPU vertically.
*PCIe riser card not included.
|Dimensions||W: 230mm H: 516mm D: 494mm (with feet)|
|Material(s)||SGCC Steel and Tempered Glass|
|Motherboard Support||Mini-ITX, MicroATX, ATX and EATX (Up to 272mm or 10.7-inches)|
|Front I/O Ports||1x USB 3.1 Gen 2 Type-C|
2x USB 3.1 Gen 1 Type-A
1x Headset Audio Jack
Front I/O internal header
1x USB 3.1 Gen 2 Internal Header
1x USB 3.1 Gen 1 Internal Header
1x USB 2.0 Internal Header
1x HD Audio Header
|Filters||All Air Intakes|
|Smart Device V2||3x Fan channels with Max 10W per channel output* |
2x RGB LED port support up to 4 x HUE 2 addressable LED strips or 5 x Aer RGB fans
Built-in noise detection module
*Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters.
|LED Strip(s)||2 integrated addressable LED strips|
|Vertical GPU Mount||Up to 2.5 Slots|
|Included Accessories||Installation screws|
10x Cable ties
1x Headset Audio Jack Splitter (4 pole to 3 pole)
|Drive Bays||2.5”: 7|
|Radiator Support||Front: 2x 140 or 3x 120mm with Push/Pull|
Top: 2x 140 or 3x 120
Rear: 1x 120
|Fan Support||Front: 3x 120/ 2x 140mm (3 Aer F120 Case Version included)|
Top: 3x 120/2x 140mm
Rear: 1x 120/1x 140mm (1 Aer F140 Case Version included)
|Fan Specs||Aer F120 (Case Version)|
Speed: 1200 ± 200 RPM
CFM Noise: 28 dBA
Bearing: Rifle Bearing
Aer F140 (Case Version)
Speed: 1,000 ± 200 RPM
Airflow: 68.95 CFM
Noise: 29 dBA
Bearing: Rifle Bearing
|Clearance||Cable Management: 18-22mm|
GPU Clearance: Up to 413mm
Vertical GPU Mount Clearance: 50.8mm
CPU Cooler: Up to 185mm
Front Radiator: 60mm
Top Radiator: 30mm
Reservoir & Pump: Up to 224mm (Along cable bar)
