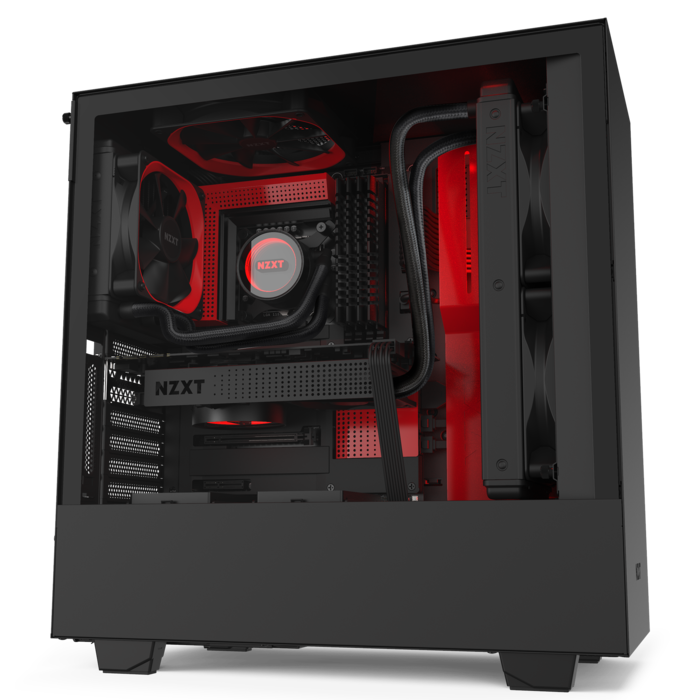

H510i

Compact Mid-Tower with Lighting and Fan Control

  • We’ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H510i.

  • The new Smart Device V2 includes a faster microprocessor for NZXT CAM-powered control of two HUE 2 RGB lighting channels and three fan channels that support either voltage regulated or PWM fans.

  • With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC

  • The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.

  • Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and fans to create your dream PC.

  • Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.

  • Two Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removeable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling.

    *Case version fans and specs vary from retail version

  • Show off your graphic card with a built-in mounting bracket for installing your GPU vertically.

    *PCIe riser card not included.

Unavailable

$99.99
DimensionsW: 210mm H: 435mm D: 428mm (without feet)
W: 210mm H: 460mm D: 428mm (with feet)
Material(s)SGCC Steel, Tempered Glass
Weight6.8 kg
Expansion Slots7
Motherboard SupportMini-ITX, MicroATX, and ATX
Radiator SupportFront: 2x 140 or 2x 120mm with Pull
Rear: 1x 120mm
Front I/O Ports1x USB 3.1 Gen 2 Type-C
1x USB 3.1 Gen 1 Type-A
1x Headset audio Jack
FiltersAll Air Intakes
Smart Device V23x Fan channels with Max 10W per channel output*
2x RGB LED port support up to 4x HUE 2 addressable LED strips or 5x Aer RGB or Aer RGB 2 fans
Built-in noise detection module
*Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters.
LED Strip(s)2 integrated addressable LED strip
Vertical GPU Mount2 Slots
Included AccessoriesInstallation screws
10x Cable ties
1x Headset Audio Jack splitter (4 pole to 3 pole)
Drive Bays2.5”: 2+1
3.5”: 2+1
Fan SupportFront: 2 x 120/ 2 x 140mm
Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included)
Rear: 1x 120mm (1 Aer F120 Case Version included)
Fan SpecsAer F120 (Case Version)
Speed: 1200 ± 200 RPM
Airflow: 50.42 CFM
Noise: 28 dBA
Bearing: Rifle Bearing
ClearanceCable Management: 19-23mm
GPU Clearance: Up to 381mm
CPU Cooler: Up to 165mm
Front Radiator: 60mm
Rear Radiator: 60mm
Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
Warranty2 Years
Model NumberCA-H510i-BR
EAN5060301695034
UPC815671014733
Multi-Language ManualPDF12.7 MBDownload
