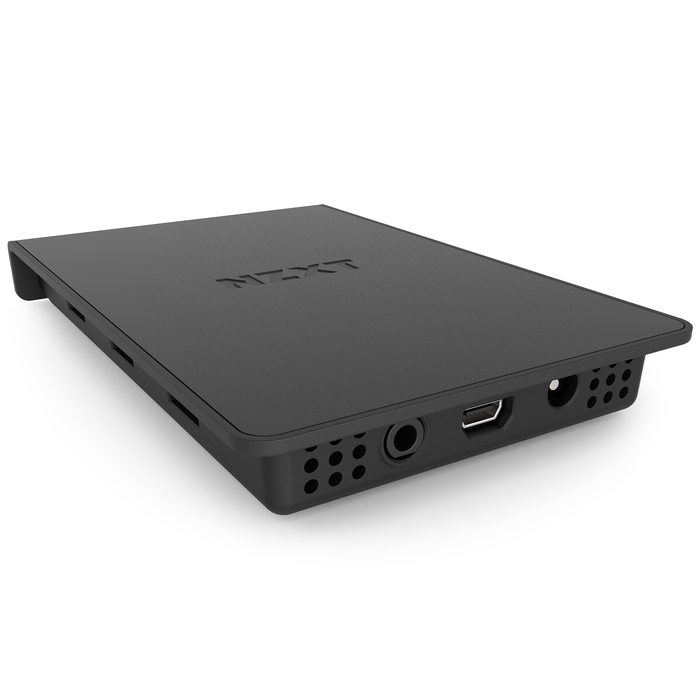

Grid+ V3

CAM-powered Digital Fan Controller

  • Finding the right mix of cooling and noise reduction can be complex and time-consuming, even for experienced builders. Grid+ V3 provides everything you need to make the easy. Using CAM, you can choose a preset fan profile, create your own, or use Adaptive Noise Reduction to automatically create a profile matched precisely to your system.

  • CAM-powered 6-channel digital fan controller with up to 5 watts per channel

  • Automatically detects 3-pin or 4-pin PWM fans

  • 0dB option shuts fans off completely for near-silent operation

  • Slim profile and magnetic back for simple installation

  • The optional Adaptive Noise Reduction profile measures your system to create a custom fan curve that can reduce fan noise up to 40%


Dimensions125 x 78 x 15 mm (GRID+ Unit)
35 x 15 x 10 mm (Noise Detection Module)
Material(s)Steel, Plastic, PCB
MountingMagnet or 3M Dual Lock
Control MethodSoftware via CAM
Fan Channel Quantity6
Fan Support3-pin or 4-pin PWM
Output Channel Voltage5W Max
Input Connector12V with 4-pin Molex
3.5mm Audio Jack for Noise Detection Module
Included Accessories1 x Noise Detection Module
1 x 450mm Extension Cable for Noise Detection Module
1 x 600mm Micro-USB cable
1 x Molex Power Cable
2 x 1 to 3 Fan Splitter Cable
5 x 100mm Zip Tie
2 x 40x13mm 3M Velcro Tape
1 x 15x13mm 3M Velcro Tape
Warranty2 Years
Model NumberAC-GRDP3-M1
System RequirementsPC with open internal USB 2.0 port and Windows® 10 operating system recommended. Internet connection is needed to download CAM.

Some CAM features require Internet access, a valid email address and acceptance of our current Terms of Service.
CAMEXE95.7 MBDownload
Multi-language ManualPDF5.36 MBDownload
